ชื่อสินค้า

DS-2CD2T85FWD-I5/I8

รายละเอียดสินค้า

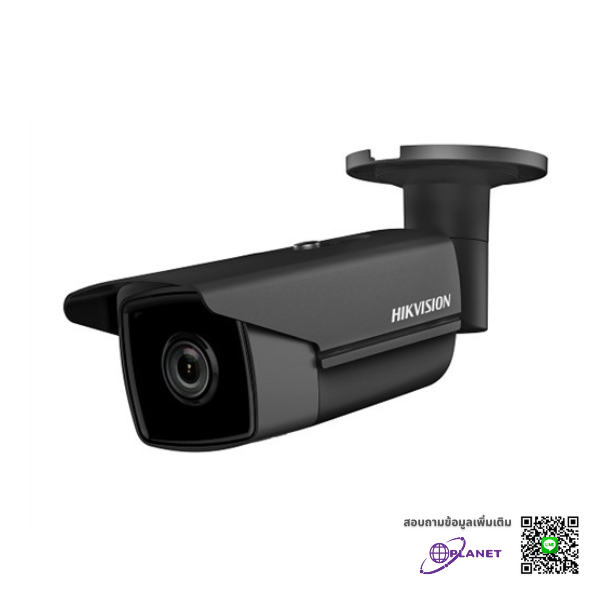

4K Fixed Bullet Network Camera

กล้องวงจรปิด HikVision รุ่น DS-2CD2T85FWD-I5/I8 ที่มีความละเอียดของภาพอยู่ที่ 8 MP มีภาพคมชัดเมื่อตัดกับแสงด้านหลังด้วยเทคโนโลยี True WDR (120 เดซิเบล) และเทคโนโลยี DarkFighter ที่สามารถบันทึกภาพได้อย่างชัดเจน ถึงแม้ว่าพื้นที่นั้นจะมีแสงน้อยก็ตาม

คุณสมบัติ

  • High quality imaging with 8 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Water and dust resistant (IP67)
  • Robust structure design with full metal materials.

ข้อมูลจำเพาะ

Camera
Image Sensor1/2.5" Progressive Scan CMOS
Min. IlluminationColor: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON), 0 lux with IR
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120dB
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Lens
FocusFixed
Lens Type 2.8/4/6/8/12 mm
FOV    2.8 mm, horizontal field of view: 102°,4 mm, horizontal field of view: 79°,6 mm, horizontal field of view: 50°,8 mm, horizontal field of view: 40°,12 mm, horizontal field of view: 23°
Aperture TypeF2.0
Lens MountM12
Illuminator
IR Range          -I5: up to 50 m,-I8: up to 80 m
Video
Max. Resolution3840 × 2160
Main Stream50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3840 × 2160), 30fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream       50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288),60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
Video Bit Rate   32 Kbps to 16 Mbps
H.264 Type       Main Profile/High Profile
H.265 Type                   Main Profile
H.264+Main stream supports
H.265+Main stream supports
Region Of Interest (ROI)Support 1 fixed region for main stream and sub-stream separately
Network
Simultaneous Live ViewUp to 6 channels
Network StorageSupport microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
API                  ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
User/Host          Up to 32 users,3 levels: Administrator, Operator and User
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
Alarm TriggerMotion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error
Day/Night SwitchDay/Night/Auto/Schedule
Target CroppingNo
DNR3D DNR
Image EnhancementBLC/3D DNR/HLC
Image Settings   Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Interface
On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
Hardware ResetYes
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
Event
Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
Face DetectionYes
Exception DetectionScene change detection
General
Firmware VersionV5.5.80
Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%, PoE(802.3af  36 to  57 V, class 3)
Power Consumption And Current-I5: 12 VDC ± 25%, 7 W; PoE, 9 W,-I8: 12 VDC ± 25%, 10 W; PoE, 12.5 W
Camera DimensionCamera: Φ104.8 × 299.7 mm (Φ4.13″ × 11.8″),Package: 386 × 156 × 155 mm (15.2″ × 6.14″ × 6.1″)
Camera Weight1200 g (2.65 lb.)
Approval
ProtectionIP67
