ชื่อสินค้า

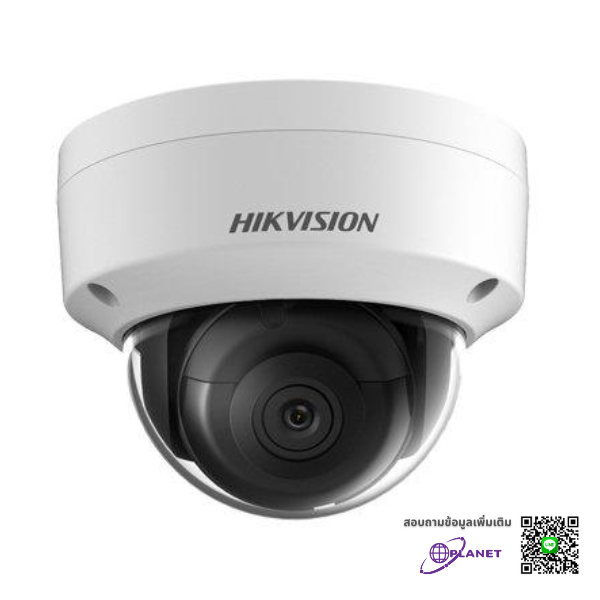

DS-2CD2125FHWD-I(S)

รายละเอียดสินค้า

2 MP High Frame Rate Fixed Dome Network Camera

กล้องวงจรปิด HikVision รุ่น DS-2CD2125FHWD-I(S) วิดีโออัตราเฟรมสูงเพื่อแสดงการเคลื่อนไหวที่ไหลลื่น มีความละเอียดภาพสูงสุดที่ 2 MP พร้อมมีเทคโนโลยี DarkFighter ที่สามารถบันทึกภาพในพื้นที่แสงน้อยได้อย่างคมชัด นอกจากนี้ยังกันน้ำ, กันฝุ่น (IP67) และกันการบุกรุก (IK10) ได้อีกด้วย

คุณสมบัติ

  • ความละเอียดสูงถึง 2 ล้านพิกเซล
  • สูงสุด 1920 × 1080 @ 60fps
  • เลนส์คงที่ 2.8 มม. / 4 มม. / 6 มม. / 8 มม. / 12 มม.
  • H.265, H.265 +, H.264 +, H.264
  • ช่วงไดนามิกกว้าง 120dB
  • ลดเสียงรบกวนแบบดิจิทัล 3D
  • ช่วง IR: สูงถึง 30 เมตร
  • รองรับการจัดเก็บออนบอร์ดสูงสุด 128 GB
  • มาตรฐานกันฝุ่นและกันน้ำ IP67
  • มาตรฐานกันกระแทก IK10

ข้อมูลจำเพาะ

Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR,Color: 0.009 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120dB
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 355° , tilt: 0° to 75°, rotate: 0° to 355°
Lens
FocusFixed
Lens Type 2.8/4/6/8/12 mm
FOV2.8 mm, horizontal field of view: 108°;4 mm, horizontal field of view: 86.4°;6 mm, horizontal field of view: 52°;8 mm, horizontal field of view: 41°;12 mm, horizontal field of view: 25°
Aperture TypeF1.6
Lens MountM12
Illuminator
IR Range         Up to 30 m
Wavelength850 nm
Video
Max. Resolution1920 × 1080
Main Stream50Hz: 50fps (1920 × 1080, 1280 × 960, 1280×720);60Hz: 60fps (1920 × 1080, 1280 × 960, 1280×720)
Sub Stream       50Hz: 25fps (640 × 480, 640 × 360, 320 × 240);60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288);;60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240)
Video CompressionMain stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Rate   32 Kbps to 16 Mbps
H.264 Type       Main Profile/High Profile
H.265 Type                   Main Profile
H.264+Main stream supports
H.265+Main stream supports
Region Of Interest (ROI)Support 1 fixed region for main stream and sub-stream separately
Network
Simultaneous Live ViewUp to 6 channels
Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
API                  ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/Host          Up to 32 users,3 levels: Administrator, Operator and User
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
Day/Night SwitchDay/Night/Auto/Schedule
DNR3D DNR
Image EnhancementBLC/3D DNR/HLC
Image Settings   Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Interface
On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
Hardware ResetYes
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
Event
Smart EventLine crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
Face DetectionYes
Exception DetectionScene change detection
General
Firmware VersionV5.5.80
General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%, 6 W, PoE(802.3af, 36 V to 57 V, class 3), 7 W
Camera DimensionCamera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″);Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″)
Camera WeightCamera: 500 g (1.1 lb.)

ดาวน์โหลดข้อมูลเพิ่มเติม

ดาวน์โหลดแคตตาล็อก

ดาวน์โหลดคู่มือ
