ชื่อสินค้า

DS-2CD2145FWD-I(S)

รายละเอียดสินค้า

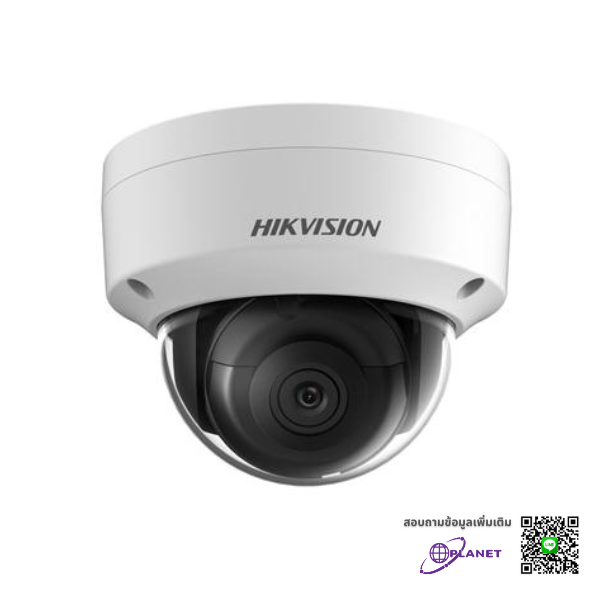

4 MP Powered-by-DarkFighter Fixed Dome Network Camera

กล้องวงจรปิด HikVision รุ่น DS-2CD2145FWD-I(S) ภาพคมชัดเมื่อตัดกับแสงด้านหลังด้วยเทคโนโลยี True WDR และยังสามารถบันทึกภาพในพื้นที่แสงน้อยได้อย่างชัดเจนด้วย เทคโนโลยี DarkFighter มีความละเอียดภาพสูงถึง 4 MP พร้อมกันน้ำและกันฝุ่น (IP67) และกันการบุกรุก (IK10) ได้

คุณสมบัติ

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • -S: audio and alarm interface available
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Robust structure design with full metal materials.

ข้อมูลจำเพาะ

Camera
Image Sensor1/2.7" Progressive Scan CMOS
Min. IlluminationColor: 0.008 lux @(F1.2, AGC ON), 0 lux with IR;Color: 0.014 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120dB
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 355° , tilt: 0° to 75°, rotate: 0° to 355°
Lens
FocusFixed
Lens Type 2.8/4/6/8/12 mm
FOV2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131°;4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105°;6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61°;8 mm, horizontal FOV: 41°, vertical FOV: 23°, diagonal FOV: 48°;12 mm, horizontal FOV: 25°, vertical FOV: 14°, diagonal FOV: 29°
Aperture TypeF1.6
Lens MountM12
Illuminator
IR Range         30 m
Video
Max. Resolution2688 × 1520
Main Stream

50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)

60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)

Sub Stream       50Hz:  25 fps (640 × 480, 640 × 360, 320 × 240);60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288);60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
Video CompressionMain stream: H.265/H.264;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264
Video Bit Rate   32 Kbps to 16 Mbps
H.264 Type       Main Profile/High Profile
H.265 Type                   Main Profile
H.264+Main stream supports
H.265+Main stream supports
Region Of Interest (ROI)Support 1 fixed region for main stream and sub-stream separately
Audio
Audio CompressionG722.1/G.711/G726/MP2L2/PCM/MP3
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
Network
Simultaneous Live ViewUp to 6 channels
Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
API                  ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/Host          Up to 32 users,3 levels: Administrator, Operator and User
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
Day/Night SwitchDay/Night/Auto/Schedule
DNR3D DNR
Image EnhancementBLC/3D DNR/HLC
Image Settings   Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Interface
On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
Hardware ResetYes
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
Event
Smart EventLine crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
Face DetectionYes
Exception DetectionScene change detection
General
Firmware VersionV5.5.80
General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial plug power, PoE(802.3af, class 3)
Power Consumption And Current12 VDC, 0.5 A, max. 5.5 W, PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7 W
Camera Dimension

Camera: Φ 111 × 82.4 mm (Φ 4.4″ ×  3.2″)

With package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″)

Camera Weight

Camera: 540 g (1.2 lb.)

With package: 730 g (1.6 lb.)
