ชื่อสินค้า

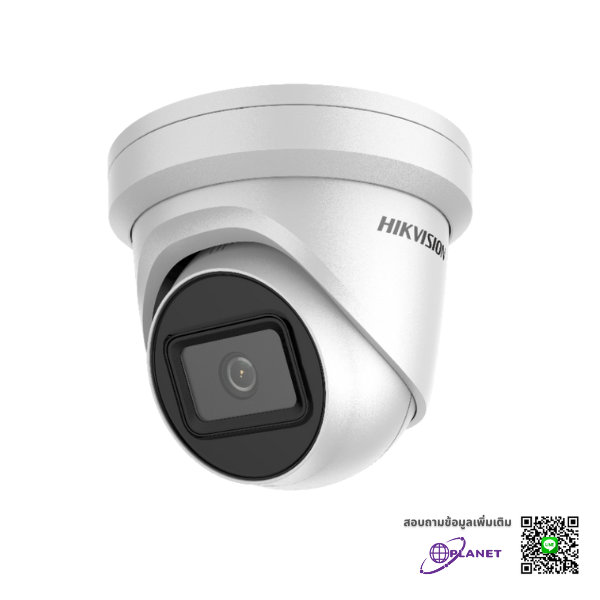

DS-2CD2385G1-I

รายละเอียดสินค้า

4K Powered-by-DarkFighter Fixed Turret Network Camera

กล้องวงจรปิด HikVision รุ่น DS-2CD2385G1-I ที่มาพร้อมกับเทคโนโลยีการบีบอัดข้อมูล H.265+ ที่มีประสิทธิภาพ ช่วยประหยัดพื้นที่จัดเก็บข้อมูลได้มากยิ่งขึ้น นอกจากนี้ยังมีเทคโนโลยี DarkFighter ที่สามารถจับภาพในพื้นที่แสงน้อยได้อย่างคมชัด และเทคโนโลยี WDR ที่ช่วยเพิ่มความชัดเจนให้กับภาพ และช่วยตัดแสงสะท้อน หรือแสงจ้า ได้อย่างมีประสิทธิภาพ พร้อมกับทนน้ำและกันฝุ่นได้ดีเยี่ยม (IP67)

คุณสมบัติ

  • High quality imaging with 8 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Water and dust resistant (IP67)
  • Robust structure design with full metal materials

ข้อมูลจำเพาะ

Camera
Image Sensor1/2" Progressive Scan CMOS
Min. Illumination       Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120dB
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
FocusFixed
FOV

2.8 mm, horizontal FOV: 110.7°, vertical FOV: 59.1°, diagonal FOV: 131°

4 mm, horizontal FOV: 87.1°, vertical FOV: 47.4°, diagonal FOV: 101.8°

6 mm, horizontal FOV: 50.8°, vertical FOV: 27.6°, diagonal FOV: 60°

Lens Type2.8/4/6 mm
ApertureF1.6
Lens MountM16
Illuminator
IR Range          Up to 30 m
Wavelength850 nm
Video
Max. Resolution3840 × 2160
Main Stream50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3840 × 2160), 30fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720),
Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288),60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240),
Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.266,
Video Bit Rate   32 Kbps to 16 Mbps
H.264 Type       Main Profile/High Profile
H.265 Type                   Main Profile
H.264+Main stream supports
H.265+Main stream supports
Region Of Interest (ROI)Support 1 fixed region for main stream and sub stream separately
Network
Simultaneous Live ViewUp to 6 channels
API                  ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
User/Host          Up to 32 users,3 levels: Administrator, Operator and User,
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Network StorageSupport micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
Alarm TriggerMotion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Day/Night SwitchDay/Night/Auto/Schedule
DNR    3D DNR
Image EnhancementBLC/3D DNR/HLC
Image Settings   Rotate mode, brightness, contrast, saturation, and sharpness are adjustable via web browser and client software
Interface
On-Board Storage          Built-in microSD/SDHC/SDXC slot, up to 128 GB
Hardware ResetYes
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
Event
Basic Event       Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing detection, intrusion detection, unattended baggage detection, object removal detection
Face DetectionYes
Exception DetectionScene change detection
General
Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
Firmware VersionV5.5.61
Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3),
Power Consumption And Current12 VDC, 0.7 A, max: 7.5 W,PoE: (802.3af, 36 VDC to 57 VDC), 0.3 A to 0.2 A, max: 9 W,
Camera Dimension        Camera: Φ 138.3 × 125 mm (5.4″ × 4.9″)
Camera WeightCamera: 725 g (1.6 lb.),With package: 966 g (2.1 lb.),
Approval
ProtectionIP67
