ชื่อสินค้า

DS-2CD2625FHWD-IZS

รายละเอียดสินค้า

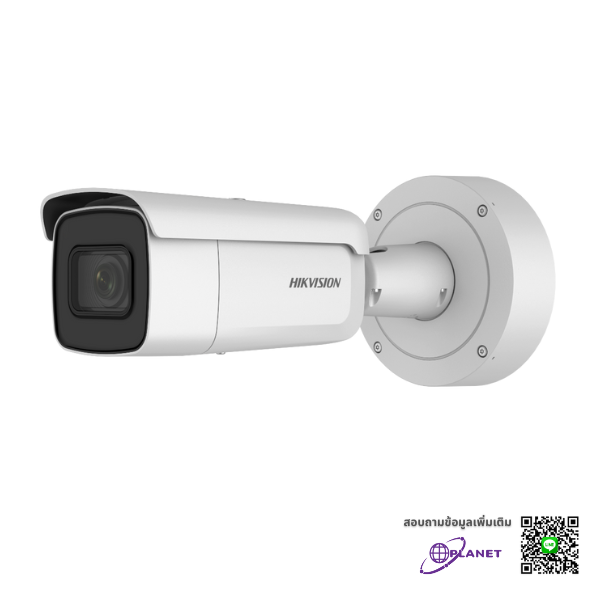

2 MP High Frame Rate Varifocal Bullet Network Camera

กล้องวงจรปิด HikVision รุ่น DS-2CD2625FHWD-IZS ที่สามารถบันทึกภาพได้อย่างคมชัด ทั้งในพื้นที่ที่มีแสงน้อย และมีแสงจ้า กล้องวงจรปิดรุ่นนี้ก็สามารถถ่ายภาพออกมาได้ชัดเจน และมีประสิทธิภาพสูง ด้วยเทคโนโลยี DarkFighter และยังมีคุณสมบัติพิเศษคือ กันน้ำและฝุ่นได้ (IP66)

คุณสมบัติ

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • High frame rate video to illustrate smooth movement
  • Water and dust resistant (IP66) and vandal proof (IK10)
  • Motorized vari-focal lens for easy installation and monitoring
  • Robust structure design with full metal materials.

ข้อมูลจำเพาะ

Camera
Image Sensor1/2.8" Progressive Scan CMOS
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120dB
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
DNR3D DNR
Lens
FocusAuto
Lens 2.8 to 12 mm;Motorized
FOV    Horizontal field of view: 105° to 35°, Vertical field of view: 56° to 20°, Diagonal field of view: 126° to 40.5°
ApertureF1.4
Lens MountΦ14
Illuminator
IR Range          Up to 50 m
Wavelength850 nm
Video
Max. Resolution1920 × 1080
Main Stream50Hz: 50fps (1920 × 1080, 1280 × 960, 1280×720),60Hz: 60fps (1920 × 1080, 1280 × 960, 1280×720)
Sub Stream       50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288),60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240)
Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Video Bit Rate   32 Kbps to 16 Mbps
H.264 Type       Main Profile/High Profile
H.265 Type                   Main Profile
SVCH.264 and H.265 encoding
Audio
Audio CompressionG722.1/G.711/G726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Environment Noise FilteringYes
Audio Sampling Rate8kHz/16kHz/32kHz/44.1kHz/48kHz
Smart Feature-Set
Smart EventLine crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Behavior AnalysisLine crossing detection, intrusion detection, unattended baggage detection, object removal detection
Region Of InterestSupport 1 fixed region for main stream and sub stream
Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
Network
Simultaneous Live ViewUp to 6 channels
API                  ONVIF (PROFILE S, PROFILE G), ISAPI
ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
User/Host          Up to 32 users,3 levels: Administrator, Operator and User,
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Network StorageSupport micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error, Alarm input, Alarm output
Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
Image EnhancementBLC/3D DNR/HLC
Image Settings   Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Approval
Impact ProtectionIK10
Compression Standard
H.264+Main stream supports
H.265+Main stream supports
Smart Feature-Set
Face DetectionYes
Exception DetectionScene change detection
General
Firmware VersionV5.5.80
Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
ResetYes
Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%, PoE (802.3at),Terminal block for DC input
Power Consumption And Current12 VDC, 1.3A, max. 15.5W,PoE (802.3at, 42.5V to 57V), 0.5A to 0.1A, max. 17.5W
MaterialMetal
Dimensions

Φ144.13×332.73 mm (Φ5.67"× 13.10")

Camera: Approx. 1890 g (4.17 lb.)

Interface ProtectionIP66
