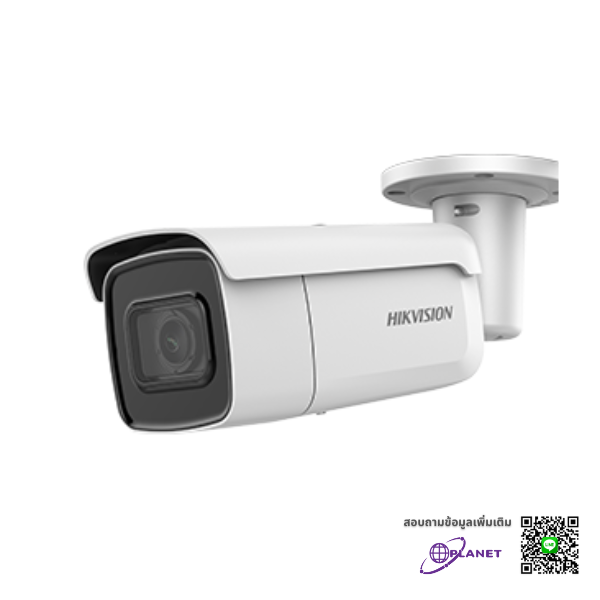

4 MP AcuSense Varifocal Bullet Network Camera
HikVision รุ่น DS-2CD2646G1-IZ(S) เป็นกล้องวงจรปิด แบบเครือข่าย ที่มีความละเอียดภาพสูงสุดที่ 4 MP และยังมาพร้อมกับเทคโนโลยี DarkFighter ที่ช่วยเพิ่มประสิทธิภาพการบันทึกภาพในพื้นที่แสงน้อยได้อย่างคมชัด นอกจากนี้กล้องยังมีการเรียนรู้เชิงลึก สามารถแยกประเภทของสิ่งของต่าง ๆ ที่ปรากฏบนบริเวณโดยรอยได้อีกด้วย ทั้งการเคลื่อนไหวแบบมนุษย์ สัตว์ และยานพาหนะ เป็นต้น
Camera Image Sensor 1/2.7" Progressive Scan CMOS Min. Illumination Color: 0.007 Lux @ (F1.2, AGC ON), 0.01 Lux @ (F1.4, AGC ON), 0 Lux with IR Shutter Speed 1/3 s to 1/100,000 s Slow Shutter Yes Wide Dynamic Range 120dB Day & Night IR Cut Filter Angle Adjustment Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360° Lens Focus Auto Lens Type 2.8 mm to 12 mm FOV Horizontal FOV: 101° to 29°, vertical FOV: 54° to 16°, diagonal FOV: 121° to 34° Aperture F1.4 Lens Mount Φ14 Aperture Type Fixed Illuminator IR Range Up to 50 m Wavelength 850 nm Video Max. Resolution 2688 × 1520 Main Stream 50Hz: 25fps (2688 × 1520, 1920 × 1080, 1280 × 720),60Hz: 30fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) Video Compression Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG Video Bit Rate 32 Kbps to 16 Mbps H.264 Type Main Profile/High Profile H.265 Type Main Profile Scalable Video Coding (SVC) H.265 encoding and H.264 encoding support Region Of Interest (ROI) Support 1 fixed region for main stream and sub-stream separately Audio Environment Noise Filtering Yes Audio Sampling Rate 8kHz/16kHz Audio Compression G.711/G.722.1/G.726/MP2L2/PCM Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) Network Simultaneous Live View Up to 6 channels Network Storage Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR API ONVIF (PROFILE S, PROFILE G), ISAPI Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour User/Host Up to 32 users,3 levels: Administrator, Operator and User Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500 Web Browser Plug-in required live view:,IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+,Plug-in free live view:,Chrome 45.0+, Firefox 52.0+ Alarm Trigger Tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error Image Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In(-S) DNR 3D DNR Image Enhancement BLC/3D DNR Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser Interface Audio 1 audio input (line in), 1 audio output (line out), mono sound Alarm 1 alarm input, 1 alarm output On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB Hardware Reset Yes Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port Event Smart Event Line crossing detection, intrusion detection, region entrance detection, region exit detection, false alarm filter by target classification General Firmware Version V5.5.63 General Function One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering Startup And Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3at, class 4) Power Consumption And Current 12 VDC, 1.3 A, max. 15.5 W,PoE: (802.3at, 42.5 VDC to 57 VDC), 0.5 A to 0.3 A, max. 19 W Camera Dimension Camera: Φ 105 × 297.5 mm (Φ 4.1" × 11.7") Camera Weight Camera: 1400 g (3.1 lb.),With package: 1750 g (3.9 lb.) Approval Protection IP67,IK10
