ชื่อสินค้า

DS-2CD2T46G1-2I/4I

รายละเอียดสินค้า

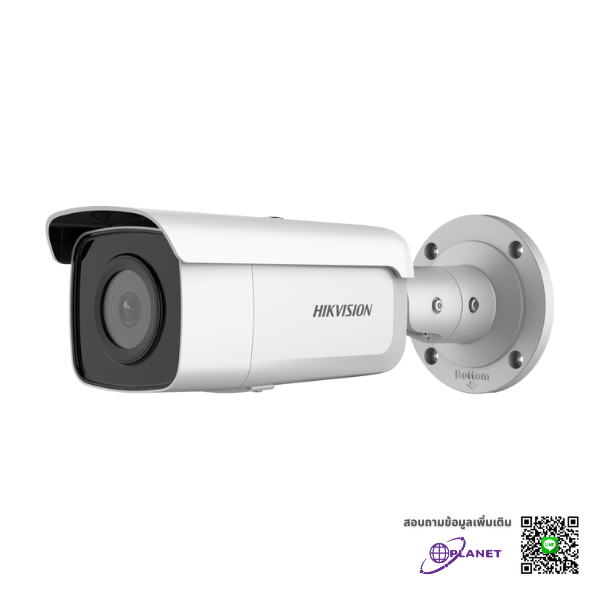

4 MP AcuSense Fixed Bullet Network Camera

HikVision รุ่น DS-2CD2T46G1-2I/4I กล้องวงจรปิดที่บันทึกภาพในเวลากลางคืน หรือพื้นที่แสงน้อยได้อย่างคมชัดด้วยเทคโนโลยี DarkFighter อย่างมีประสิทธิภาพ พร้อมด้วยเทคโนโลยี WDR (120 dB) ที่บันทึกภาพย้อนแสงได้ชัดเจนเช่นกัน

คุณสมบัติ

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • False alarm reduction through human and vehicle target classification based on deep learning
  • Water and dust resistant (IP67)
  • 50/80 m IR distance for bright night imaging
  • Robust structure design with full metal materials

ข้อมูลจำเพาะ

Camera
Image Sensor1/2.7" Progressive Scan CMOS
Min. Illumination0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.6, AGC ON)
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120dB
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
FocusFixed
Lens Type 2.8/4/6/8 mm
FOV2.8 mm, horizontal FOV: 104°, vertical FOV: 58°, diagonal FOV: 124°,4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°,6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 58°,8 mm, horizontal FOV: 39°, vertical FOV: 21°, diagonal FOV: 45°
Aperture F1.6
Lens MountM12
Aperture TypeFixed
Illuminator
IR Range         -2I: 2LEDs, up to 50 m,-4I: 4LEDs, up to 80 m
Wavelength850 nm
Video
Max. Resolution2688 × 1520
Main Stream50Hz: 25fps (2688 × 1520, 1920 × 1080, 1280 × 720),60Hz: 30fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub Stream       50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 576, 640 × 480, 352 × 288)
Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG
Video Bit Rate   32 Kbps to 16 Mbps
H.264 Type       Main Profile/High Profile
H.265 Type                   Main Profile
H.264+Main stream supports
H.265+Main stream supports
Scalable Video Coding (SVC)H.265 encoding and H.264 encoding support
Region Of Interest (ROI)Support 1 fixed region for main stream and sub-stream separately
Network
Simultaneous Live ViewUp to 6 channels
Network StorageSupport micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
API                  ONVIF (PROFILE S, PROFILE G), ISAPI
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
User/Host          Up to 32 users,3 levels: Administrator, Operator and User
ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Alarm TriggerTampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Day/Night SwitchDay/Night/Auto/Schedule
DNR3D DNR
Image EnhancementBLC/3D DNR
Image Settings   Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Interface
Audio1 audio input (line in), 1 audio output (line out), mono sound
Alarm1 alarm input, 1 alarm output
On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
Hardware ResetYes
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
Event
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exit detection, false alarm filter by target classification
General
Firmware VersionV5.5.61
General FunctionOne-key reset, anti-filter
Startup And Operating Conditions-30 °C to +50 °C (-22 °F to +122 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3at, class 4)
Power Consumption And Current-2I: ,12 VDC, 0.9 A, Max: 10.5 W,PoE: (802.3at, 42.5 V to 57 V), 0.3A to 0.1A, Max: 13 W,-4I:,12 VDC, 1.2 A, Max: 14 W,PoE: (802.3at, 42.5 V to 57  V), 0.4A to 0.1A, Max: 17 W
Camera DimensionCamera: Φ105 × 289.5 mm (Φ4.1″ × 11.4″)
Camera WeightCamera: 1100 g (2.4 lb.),With package: 1600 g (3.5 lb.)
Approval
ProtectionIP67
