ชื่อสินค้า

DS-2CD3745G0-IZS

รายละเอียดสินค้า

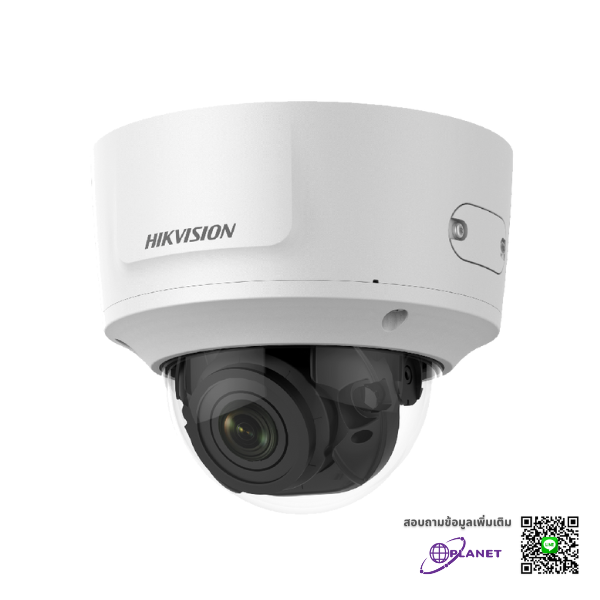

4MP Powered by darkfighter Moto Varifocal Dome Network Camera

กล้องวงจรปิด HikVision รุ่น DS-2CD3745G0-IZS มีความละเอียดของภาพถ่ายสูงสุดที่ 4 MP มาพร้อมกับเทคโนโลยีการบีบอีดข้อมูล H.265+ ที่มีประสิทธิภาพ ช่วยประหยัดแบนด์วิธและพื้นที่จัดเก็บได้ดีเยี่ยม  นอกจากนี้ยังมีเทคโนโลยี DarkFighter ที่สามารถถ่ายภาพในพื้นที่แสงน้อยได้อย่างคมชัด และตัวเครื่องยังกันน้ำและฝุ่นได้

คุณสมบัติ

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology to save bandwidth and storage
  • Clear imaging even against strong back light thanks to 120 dB true WDR technology
  • Water and dust resistant (IP66) and vandal proof (IK10)

ข้อมูลจำเพาะ

Camera
Image Sensor1/2.5" Progressive Scan CMOS
Min. IlluminationColor: 0.008 lux @(F1.2, AGC ON), 0.011 lux @(F1.4, AGC ON), 0 lux with IR
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120 dB
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
FocusAuto
Lens Type2.7 to 13.5 mm
FOV

Horizontal field of view: 116° to 30°

Vertical field of view: 60° to 17°

Diagonal field of view: 144° to 33.5°

ApertureF1.4
Lens MountØ14
Auto-IrisDC drive
Illuminator
IR RangeUp to 40 m
Wavelength850 nm
Video
Max. Resolution2688 × 1520
Main Stream

50 Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)

60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50 Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288)

60 Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)

Video Compression

Main stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264/MJPEG

Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeMain Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream supports
H.265+Main stream supports
Region Of Interest (ROI)5 fixed region for main stream and sub-stream
Audio
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio CompressionG722.1/G.711/G726/MP2L2/PCM/MP3
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
Network
Simultaneous Live ViewUp to 6 channels
APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
User/HostUp to 32 users,3 levels: Administrator, Operator and User
Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chr2ome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
Alarm TriggerMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Day/Night SwitchDay/Night/Auto/Schedule/Triggered by alarm in(-S)
Target CroppingYes
DNR3D DNR
Image EnhancementBLC/3D DNR/HLC
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Interface
Audio1 input (line in, 3.5 mm), 1 output(3.5 mm), single track
Alarm1 input, 1 output (max. 12 VDC, 30 mA)
Video Output1Vp-p composite output (75 Ω/BNC) (For adjustment only)
On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
Hardware ResetYes
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
Event
Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing detection, up to 1 line configurable Intrusion detection, up to 1 region configurable Unattended baggage detection, up to 1 region configurable Object removal detection, up to 1 region configurable Face detection: detects faces Scene change detection
Face DetectionYes
Exception DetectionScene change detection
General
Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email
Firmware VersionV5.6.0
General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%, terminal block for DC input PoE(802.3af, class 3)
Power Consumption And Current12 VDC, 0.9 A, max. 10.5 W PoE (802.3af, 36V to 57V), 0.4 A to 0.2 A, max. 12.5 W
Camera DimensionØ153.4 × 133.1 mm (Φ6"  × 5.2")
Camera WeightCamera: 1287 g (2.8 lb.)
Approval
ProtectionIK10,IP66
