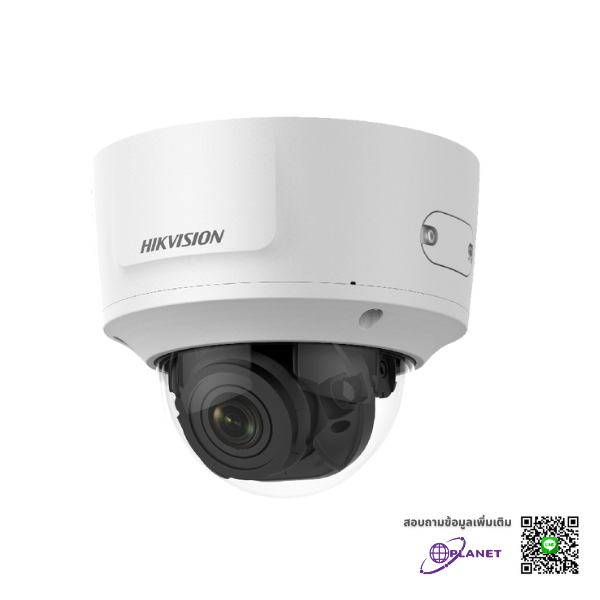

8MP Powered by darkfighter Moto Varifocal Dome Network Camera
กล้องวงจรปิด HikVision รุ่น DS-2CD3785G0-IZS มีความละเอียดภาพสูงสุดที่ 8 MP สามารถถ่ายภาพในพื้นที่แสงน้อยได้อย่างคมชัดด้วยเทคโนโลยี DarkFighter และยังสามารถบีบอัดข้อมูลได้ดี ทำให้ประหยัดพื้นที่ในการจัดเก็บได้มากยิ่งขึ้น
Camera Image Sensor 1/1.8" Progressive Scan CMOS Min. Illumination Color: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON) Shutter Speed 1/3 s to 1/100,000 s Slow Shutter Yes Wide Dynamic Range 120 dB Day & Night IR Cut Filter Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° Lens Focus Auto Lens Type 2.7 to 13.5 mm FOV Horizontal field of view: 114° to 44° Vertical field of view: 61° to 25° Diagonal field of view: 136° to 50° Aperture F1.4 Lens Mount Ø14 Auto-Iris DC drive Illuminator IR Range Up to 40 m Wavelength 850 nm Video Max. Resolution 3840 × 2160 Main Stream 50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) Sub-Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) Video Compression Main stream: H.265/H.264 Sub-stream/third stream: H.265/H.264/MJPEG Video Bit Rate 32 Kbps to 16 Mbps H.264 Type Main Profile/High Profile H.265 Type Main Profile H.264+ Main stream supports H.265+ Main stream supports Region Of Interest (ROI) 5 fixed region for main stream and sub-stream Audio Environment Noise Filtering Yes Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio Compression G722.1/G.711/G726/MP2L2/PCM/MP3 Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3) Network Simultaneous Live View Up to 6 channels API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS User/Host Up to 32 users,3 levels: Administrator, Operator and User Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR Client iVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE8+ Plug-in free live view: Chr2ome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ Alarm Trigger Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Image Day/Night Switch Day/Night/Auto/Schedule/Triggered by alarm in(-S) Target Cropping Yes DNR 3D DNR Image Enhancement BLC/3D DNR/HLC Image Settings Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser Interface Audio 1 input (line in, 3.5 mm), 1 output(3.5 mm), single track Alarm 1 input, 1 output (max. 12 VDC, 30 mA) Video Output 1Vp-p composite output (75 Ω/BNC) (For adjustment only) On-Board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB Hardware Reset Yes Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port Event Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Smart Event Line crossing detection, intrusion detection, unattended baggage detection, object removal detection Face Detection Yes Exception Detection Scene change detection General Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email Firmware Version V5.6.0 General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening Startup And Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) Power Supply 12 VDC ± 25% PoE (802.3af, class 3) Power Consumption And Current 12 VDC, 0.9A, max. 10.5W PoE: (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12.5W Camera Dimension Camera: Φ 153.4 × 133.1 mm (Φ 6" × 5.2") Camera Weight Camera: 1300 g (2.9 lb.) With package: 1500 g (3.3 lb.) Approval Protection IP67, IK10
